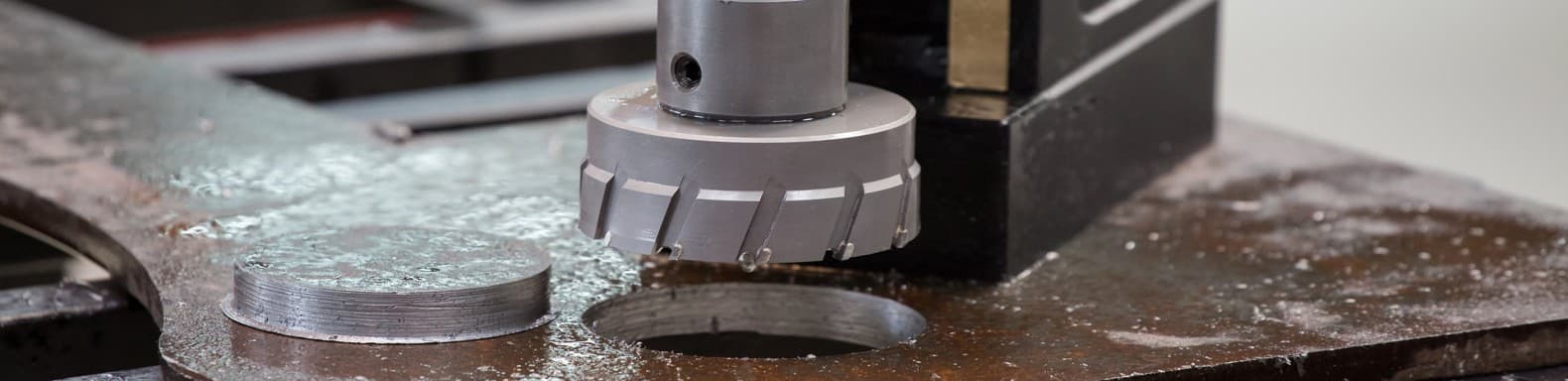

Annular cutters, also known as core drills or slugger cutters, are specialized cutting tools used for creating large-diameter holes in metal. They are designed to remove a cylindrical piece of material, known as a slug or core, from the workpiece, leaving a clean and precise hole. Annular cutters offer advantages over traditional drilling methods, such as faster cutting speeds, reduced power consumption, and improved hole quality. Here's an overview of annular cutters:

Construction and Design: Annular cutters consist of a cylindrical cutting body with multiple cutting edges or teeth around the outer circumference. The cutting edges are usually made of high-speed steel (HSS), cobalt, or carbide, known for their hardness and durability. The cutter has a hollow center, allowing for the removal of the slug during the drilling process.

Annular cutters are available in various sizes, typically ranging from 12mm (0.5 inches) up to several inches in diameter. They can be used with handheld magnetic drilling machines or stationary drill presses.

Working Principle: When an annular cutter is used, the cutting edges simultaneously remove material from the periphery of the hole being drilled, creating a clean and accurate hole with minimal burrs. The cutter's geometry and multiple cutting edges distribute the cutting forces, resulting in efficient material removal and reduced power requirements compared to traditional twist drills.

Applications: Annular cutters are primarily used for drilling holes in metal, including steel, stainless steel, cast iron, and aluminum. They are commonly employed in industries such as metalworking, fabrication, construction, and automotive repair. Annular cutters are particularly advantageous for drilling holes in thick metal workpieces, as they provide faster cutting speeds, reduced vibration, and improved hole quality.

Advantages of Annular Cutters:

1. Faster Cutting Speed: Annular cutters are designed to cut material more quickly than traditional drilling methods. The multiple cutting edges remove material in a concentrated area, resulting in faster drilling times.

2. Reduced Power Consumption: The design of annular cutters requires less power to remove material compared to standard twist drills. This leads to lower energy consumption and improved efficiency, especially when drilling larger holes.

3. Improved Hole Quality: Annular cutters create clean, accurate, and burr-free holes. The concentric cutting action produces a smoother surface finish, reducing the need for additional deburring or finishing operations.

4. Longer Tool Life: Annular cutters are engineered for durability and have a longer tool life compared to standard drill bits. They can withstand the demands of cutting through hard metal materials without excessive wear or damage.

Using Annular Cutters: When using annular cutters, it is crucial to secure the workpiece properly and ensure the cutter is aligned correctly with the desired drilling location. Using suitable cutting lubricants or coolants can help improve cutting performance, reduce heat buildup, and extend the tool's lifespan. Regular inspection and maintenance, such as sharpening or replacing worn cutting edges, are essential for optimal cutting performance.

Overall, annular cutters are efficient, high-performance tools for drilling large-diameter holes in metal. They offer advantages in terms of cutting speed, power consumption, and hole quality, making them preferred choices in various metalworking applications.
